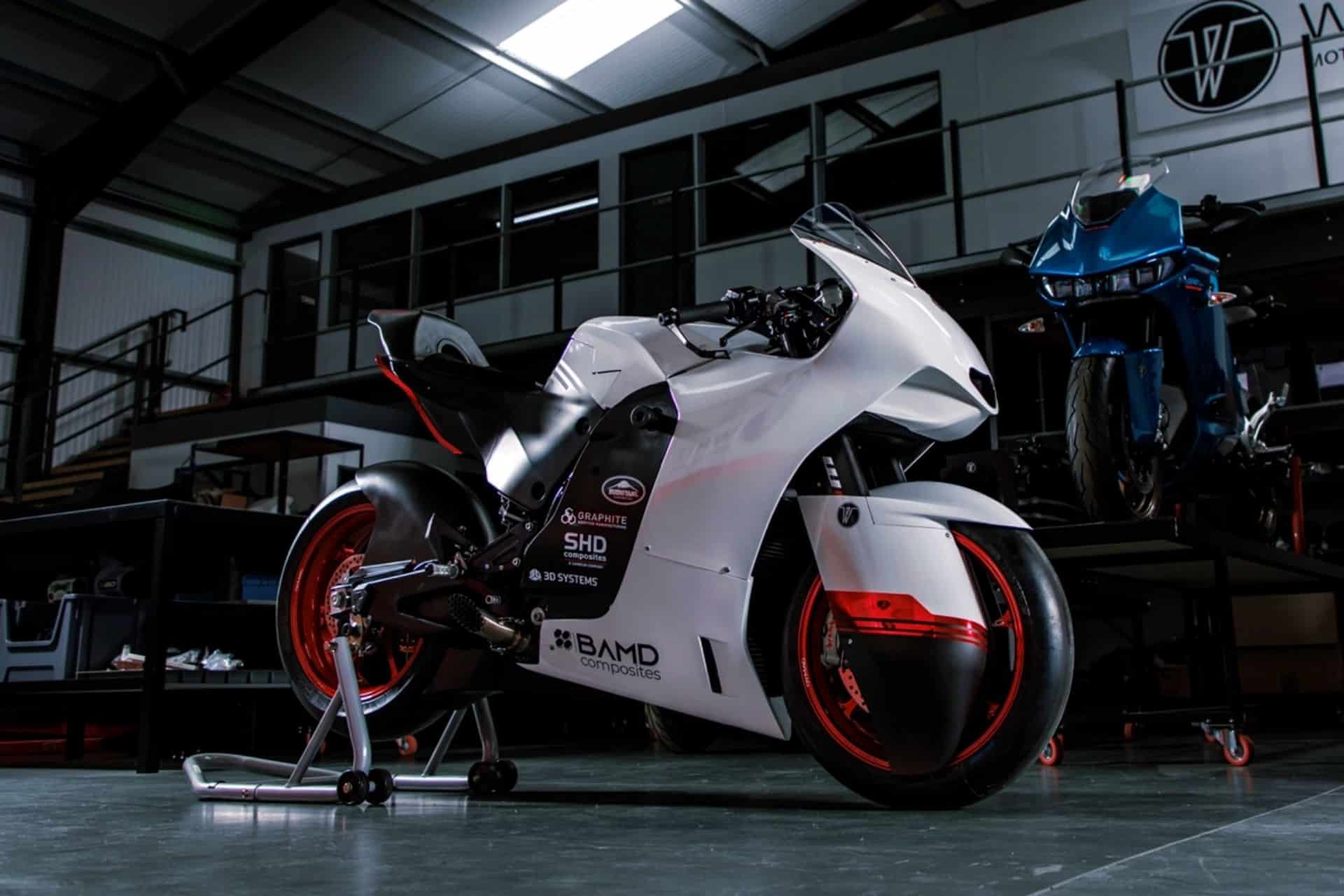

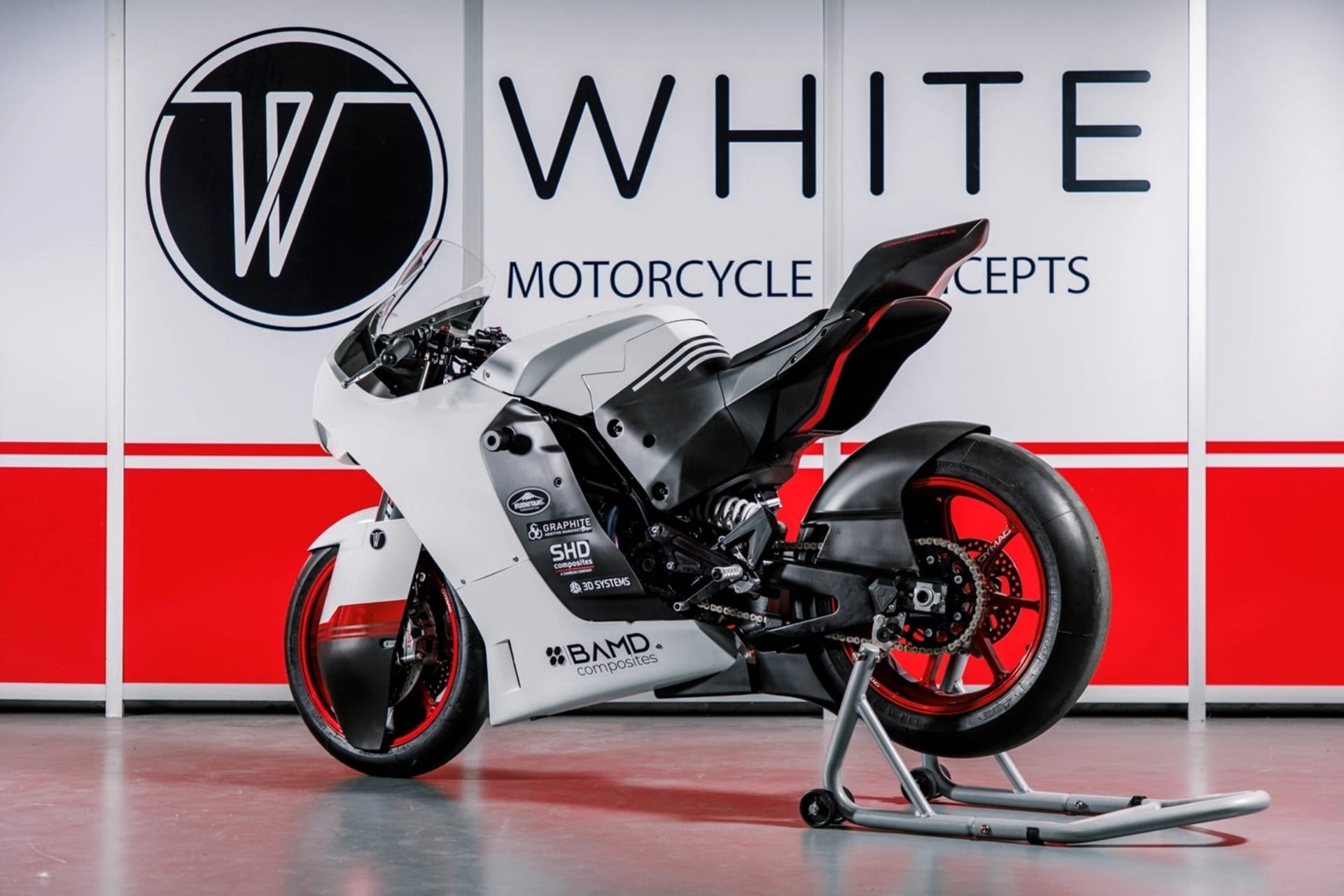

The aerodynamics of sports motorcycles still have a lot of room for evolution and to take several more “turns of the screw.” This shows it White Motorcycle Concepts (W.M.C.), a British engineering company that has taken this idea one step further with the WMC-Mono-RRa circuit machine that “rethinks both the body and the mechanical architecture to get the air to pass through the bike instead of being forced to go around it.”
The project takes as its starting point the Kramer EVO2 690Ra light sports car designed to ride on the circuit, but deeply modified in its original configuration. The result is a functional prototype that combines a medium-displacement single-cylinder engine, a compressor and an aerodynamic solution integrated into the center of the assembly. As they have announced, W.M.C. will present this technology in the next EICMA 2026from November 3 to 8, in Milan.
WMC-Mono-RR: a central duct to reduce aerodynamic drag
Without a doubt, the main peculiarity of the WMC-Mono-RR It is a duct that runs longitudinally through the motorcycle. The entrance is located in the front area, while the exit is located under the seat. This way, some of the airflow circulates around the inside of the frame instead of being completely diverted around the fairing.
This solution, developed from the aerodynamic technology patented by W.M.C.seeks to reduce energy losses caused by air resistance and better control the forces that act on the motorcycle at high speed. Obviously, to make this possible, the team has had to rethink the distribution of numerous components and take advantage of the available space around the engine.
According to data published by the company itself, aerodynamic simulations point to a 16.4% reduction in drag. A 77% decrease in aerodynamic lift and a 111% improvement in the relationship between lift and drag have also been calculated. These are development figures that must be contrasted with physical tests and do not, by themselves, equate to an identical improvement in lap times.
WMC-Mono-RR: 450 cc Yamaha engine with Rotrex compressor

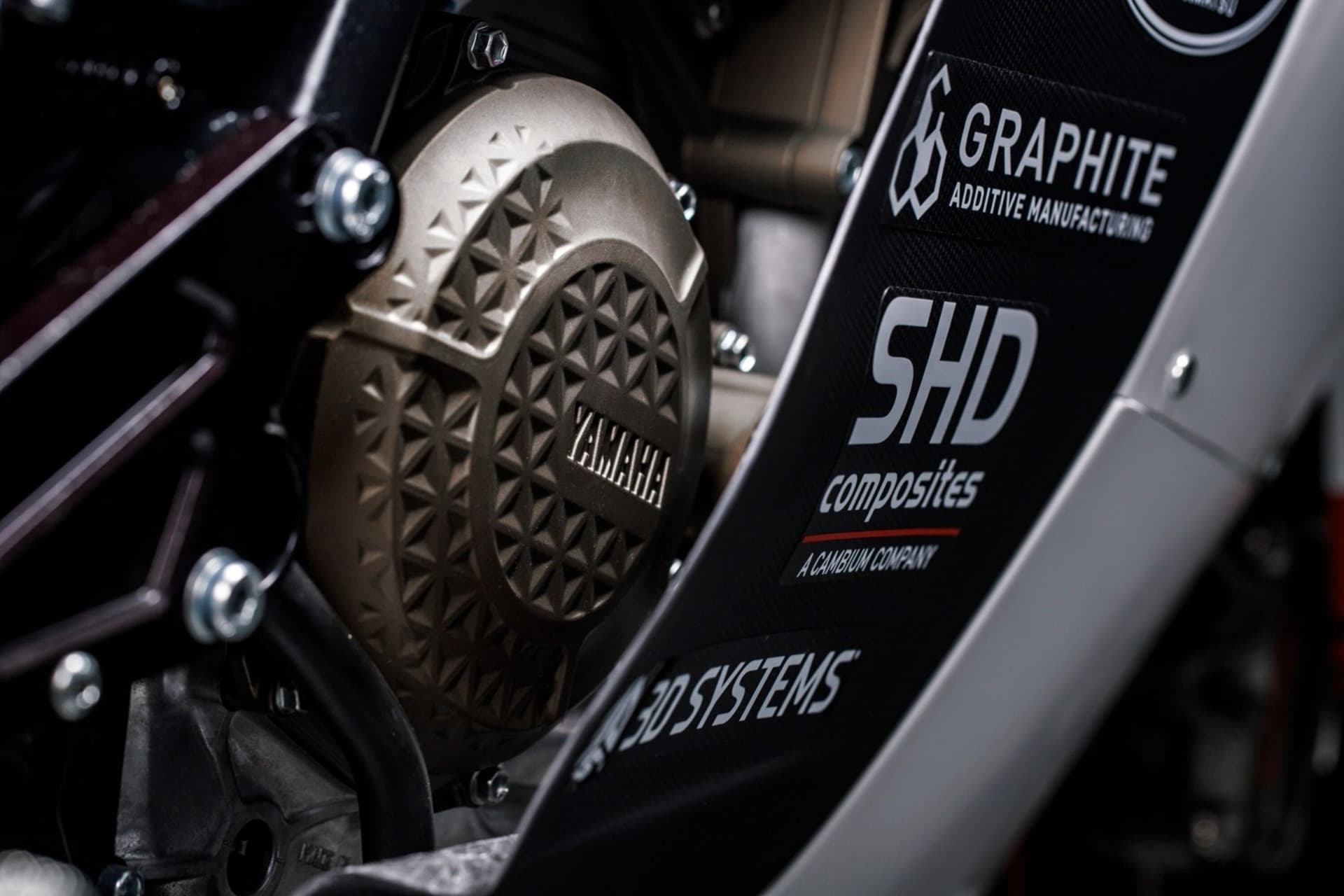

To free up space and allow for duct installation, W.M.C. has replaced the approximately 690 cc single-cylinder of the Kramer original for a propeller yamaha 449 cc derived from the YZ450F of motocross. Its inverted cylinder head configuration, with the intake at the front and the exhaust at the rear, has facilitated the integration of the different systems.
The reduction in displacement does not mean that the team wants to give up performance. To compensate for the difference compared to the original engine, they have installed a centrifugal compressor Rotrex C15-20 which forces air into the engine. Furthermore, the system incorporates a intercoolera specific intake and electronic management adapted to the new mechanical requirements.

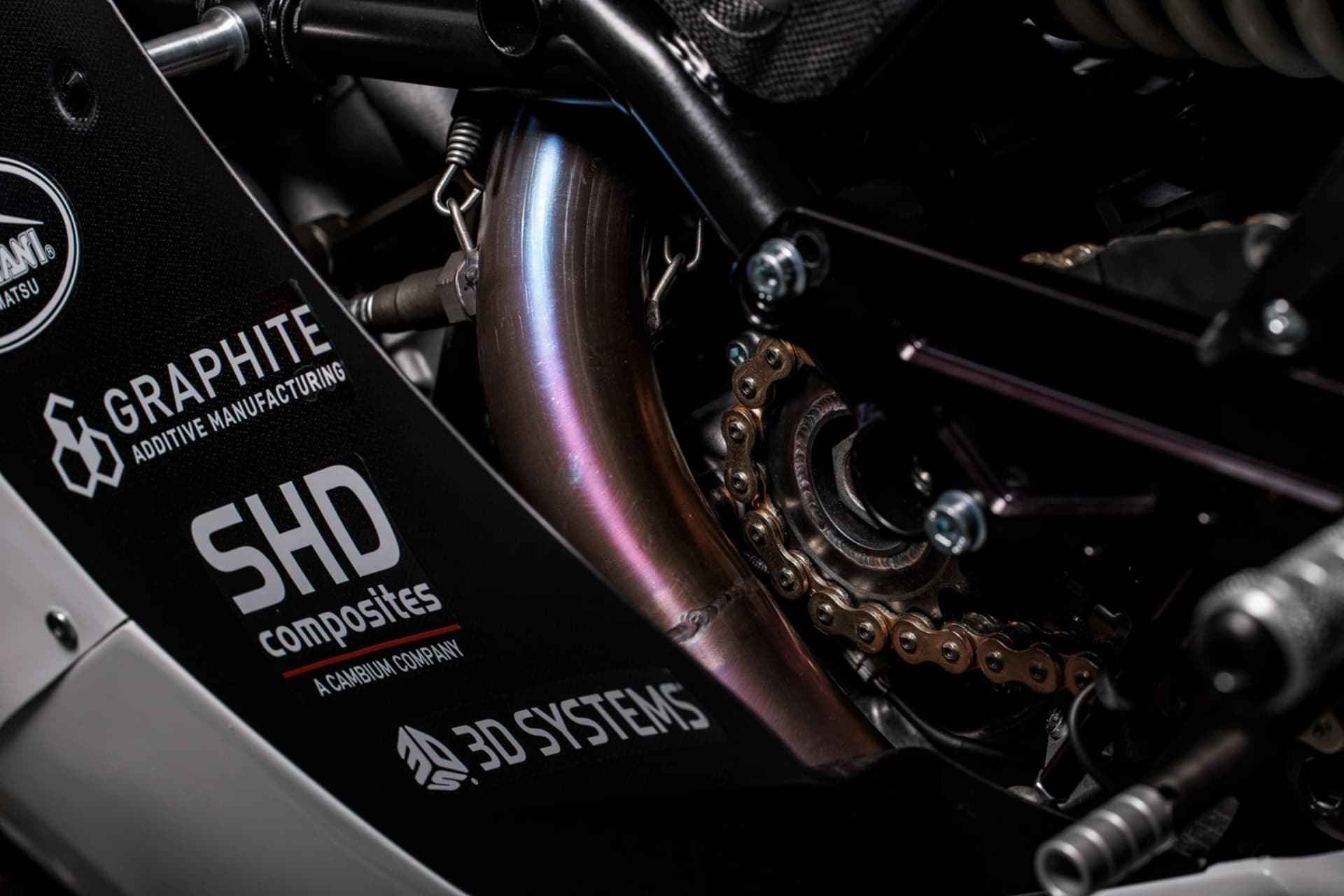

This type of transformation has also logically required modifying internal components, including the piston and other engine elements, in addition to developing specific solutions for lubrication, cooling and exhaust. All of this has to fit perfectly into the multi-tubular steel chassis of the Kramer. And, furthermore, maintaining a distribution consistent with the aerodynamic objectives of the project.
Carbon fiber and a body designed to guide air

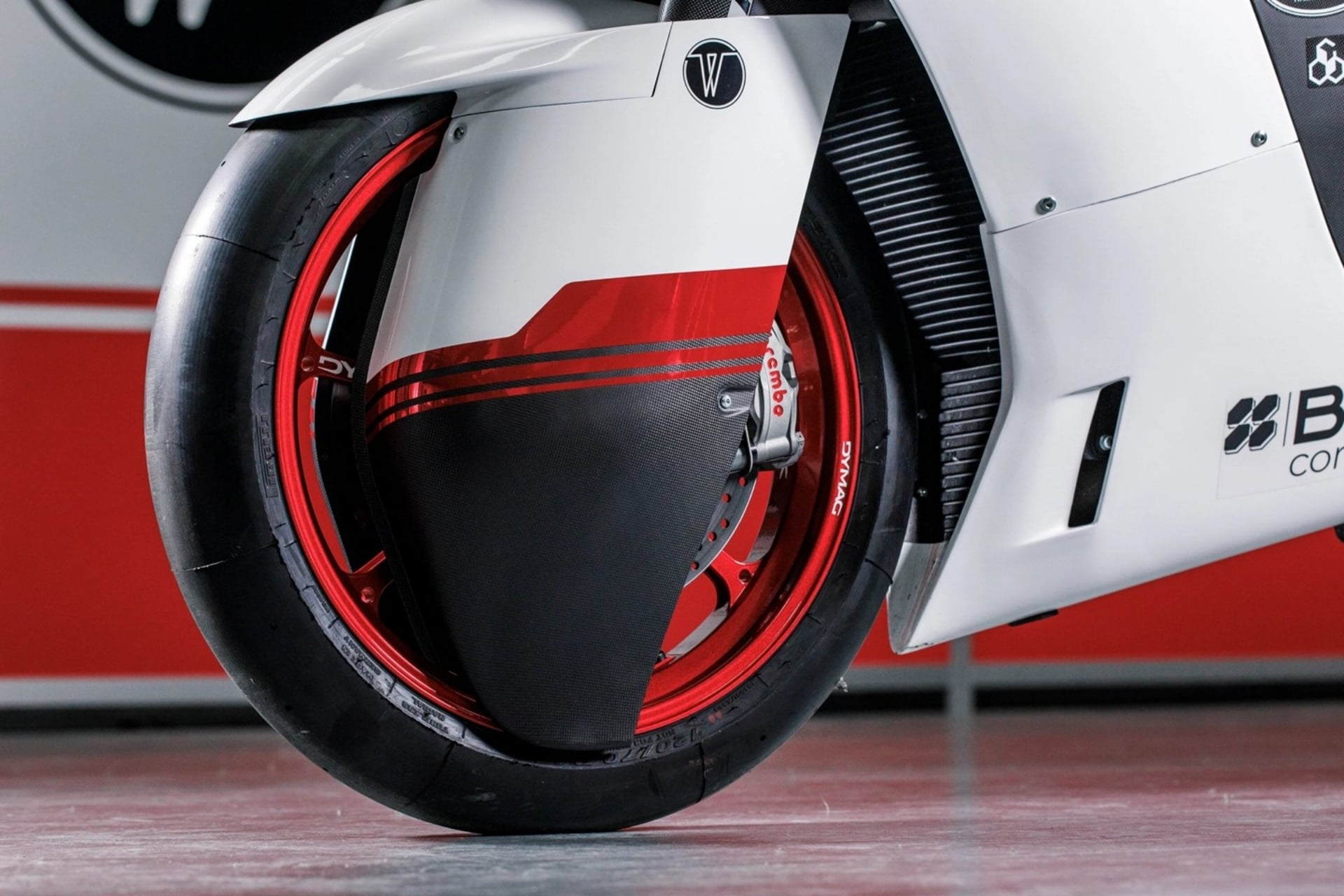

The central duct is not the only important modification. The WMC-Mono-RR It incorporates specific carbon fiber elements, including a front brake cover and a larger rear fender. It also features aerodynamic solutions in the lower area of the fairing and around the swingarm to control turbulence near the rear wheel.
The rear structure of the duct and other body elements have been developed with composite materials, while the layout of the tank and intercooler responds to the packaging needs of the set. The tank is integrated into an area located in front of the pilot, instead of retaining the usual distribution of the Kramer starting.
Another important aspect is the aerodynamics of the pilot himself. By modifying the air path, engineers have had to study how the flow behaves around the legs and knees. To solve this, they have added side extensions that help maintain a more controlled flow next to the body. W.M.C. The reduction in aerodynamic resistance attributed to these improvements around the pilot is estimated at 30.4 newtons.

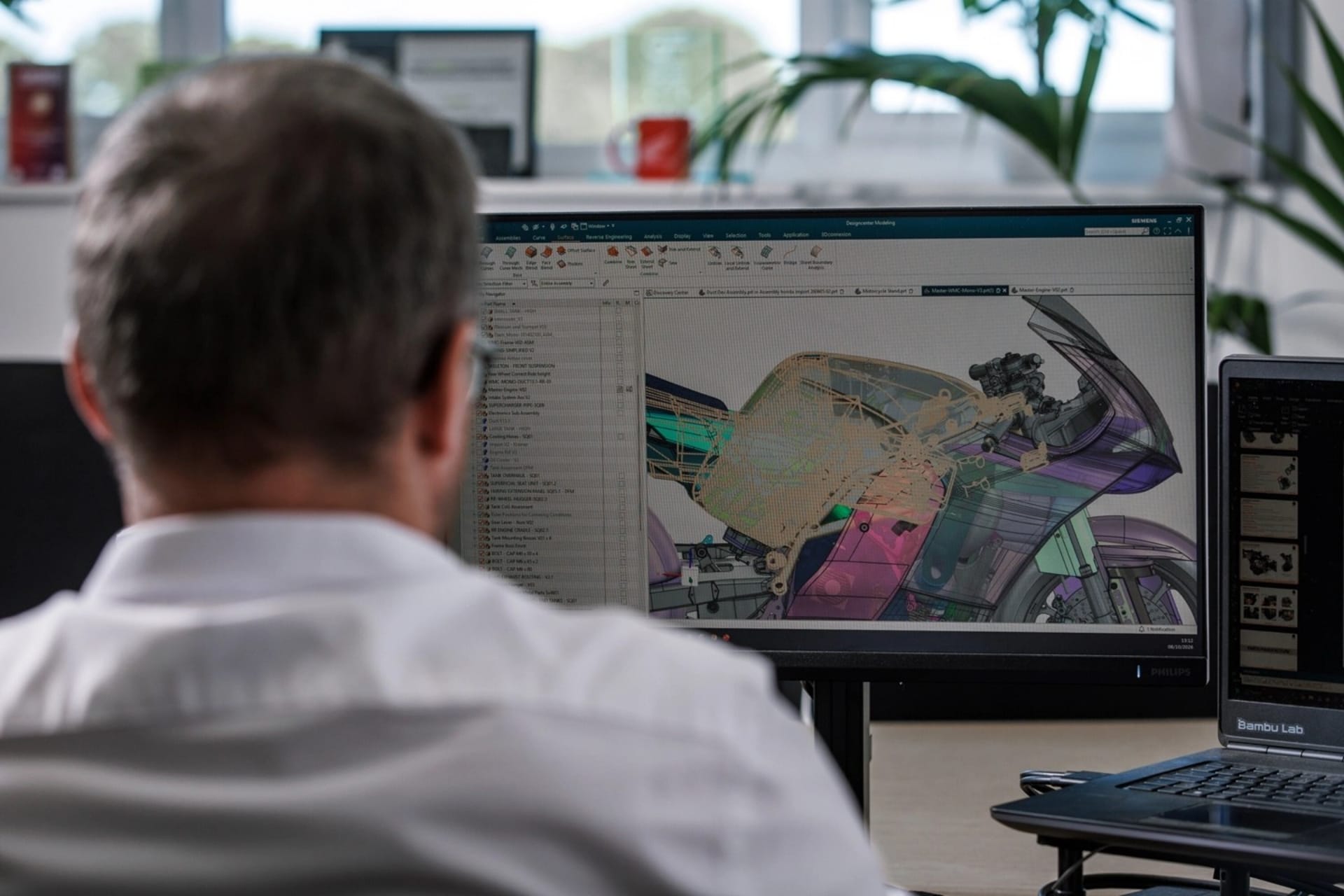

The development of the WMC-Mono-RR has required intense computer-aided engineering work. Before manufacturing the parts, the team studied different duct and body geometries using digital models and computational fluid dynamics (CFD) simulations. It also used three-dimensional scanning of the pilot to analyze the interaction between driving position and airflow.
Now, this machine is already functional and has begun its tests, but the next step is to compare the digital predictions with physical measurements in the wind tunnel and track tests. That phase will be essential to determine how much of the calculated aerodynamic improvement actually translates into efficiency, speed and dynamic behavior. W.M.C. estimates that the concept could contribute to improving fuel consumption by around 7%, in addition to raising the maximum speed by approximately 3%.
The British are also studying the possibility of using synthetic fuels or alternatives with a lower carbon footprint in future evolutions. Its approach is not to present the WMC-Mono-RR as an immediate production motorcycle, but in demonstrating that combustion, supercharging and more efficient aerodynamics can be combined to reduce technical compromises.
